The inspection window

Top  Previous  Next

This is a template generated window. However, it can be completely customized via external options and source TRN files.

There are two versions of this window. Both versions are included in the "FRWindow.TRN" file (by default) so you can easily customize them (See Inspect Tab).

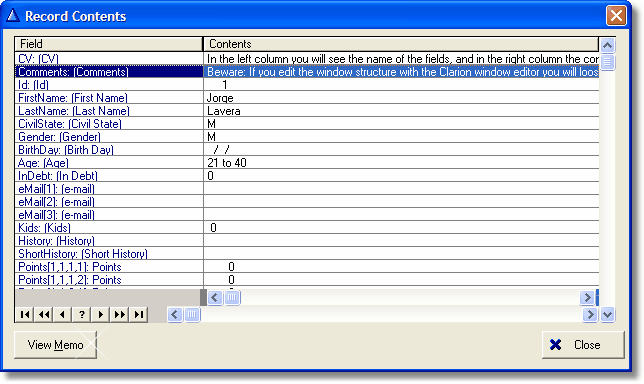

When you press the "View Record" button over a read, add or delete option (LW, AW or BW by default) you will see the window below:



clip0022

In the left column you will see the name of the fields, and in the right column the content of each field at the moment of the highlighted operation. You can change the title of the columns and window, and the text of the button (See Translation options) and the first column contents and the wallpaper and button's icon (See Inspect Tab).

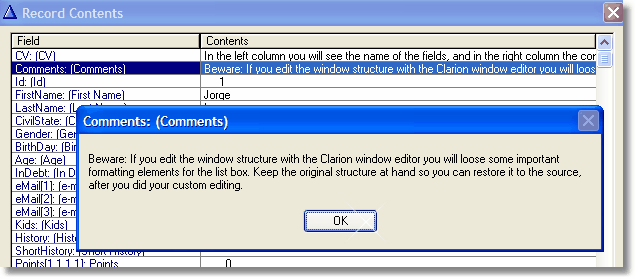

The "View Memo" button will be active only when you select a memo field in the list of fields. When you press the button you will see the full contents of the memo field:



clip0066

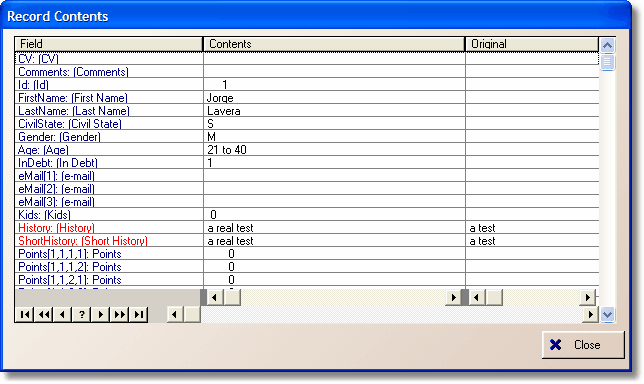

When you press the "View Record" button over a modification option (CH by default) you will see the window below:



clip0023



In this window, you will see three columns. In the left column you will see the name of the fields, in the middle column the final content of each field at the moment of the highlighted operation (after the modification) and in the third column the original content of each field before the modification, only when the value is different.

When you actually have a field modification, you will see the changed field name in red in the first column.

Note that if you don't have an original value the third column will remain empty, and in that case only the red color will indicate that a change occurred.

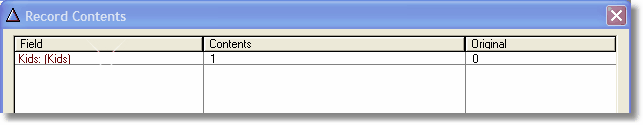

If you choose to "change changed data only" in the Inspect Tab, you will see only the changed fields in the window, as follows:



clip0067
